Application:

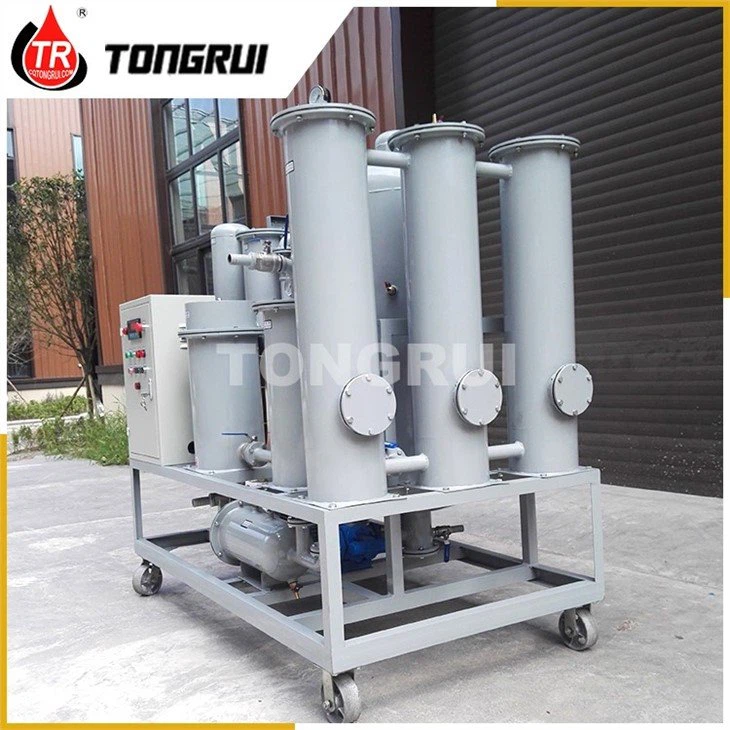

ZJD series oil purification machine can remove 99.9 percent of the particles greater than 5 microns in the used hydraulic oil, machine oil, refrigerator oil after the first treatment, and the moisture content to 100ppm. When using once-through treatment, the output oil can be used again. When treat the used oil repeatedly, this series machine can further reduce the level of pollution and remove the moisture content of the device thoroughly.
Technical paramete
Product Specifications | ||||||||
Index name | Unit | ZJD-10 | ZJD-20 | ZJD-30 | ZJD-50 | ZJD-75 | ZJD-100 | ZJD-150 |
Flow rate | L/H | 600 | 1200 | 1800 | 3000 | 4500 | 6000 | 9000 |
vacuum degree | Mpa | -0.060.095 | ||||||
working pressure | Mpa | Less than or equal to 0.4 | ||||||
temperature range | C | 0-100 | ||||||
water content | PPM | Less than or equal to 80 | ||||||
cleaness | NAS | Less than or equal to 6(class) | ||||||
gas content | percent | Less than or equal to 0.1 | ||||||
impurities content | 3-5micro | |||||||
power supply | 380V/220V | |||||||
noise | dB(A) | Less than or equal to 70 | ||||||
demulsifying value | MIN | NEW OIL | ||||||
heating power | KW | 36 | 40 | 45 | 72 | 80 | 90 | 120 |
total power | KW | 38 | 42 | 47 | 75 | 87 | 101 | 135 |
diameter | MM | 25 | 25 | 25 | 32 | 42 | 50 | 50 |
weight | Kg | 450 | 550 | 600 | 750 | 850 | 1000 | 1200 |
Advantages:
1) Combined with coalescence separation and vacuum separation, water separation adopts world advanced coalescence separation technology, which is able to rapidly remove big quantity water and trace moisture from high water content lube oil.
2) High decontaminate ability, big area, deep levels, high precision FH rectangle filtration system is capable of remove metal particles, dust, impurities effectively.
3) H.P.M polymer adsorption material with Tongrui technology, utilizing high quality parts and sealing materials, meeting the requirement that high viscosity oil need high temperature in filtrating, extend ranges and types of oil to be filtrate-able.
4) Stainless steel filter elements with seats form nets are cleanable, economical, and reusable.
5) Heating system utilized optimized piping design, ensures averagely heating, no bypassed area, stable oil temperature.
6) Humanized design, dual infrared liquid level control system, relay protection, overload protection. Overload electric protection control system and oil temperature stabilizing system ensures easy operation and safety.
Oil index after treatment | ||
Demulsification value | min | Less than or equal to 15min |
Gas content | percent | Less than or equal to 0.1 percent |
Water content | percent | Trace(no) |
Cleanness | NAS | Less than or equal to 6 |
Precision | µm | Less than or equal to 5µm (or customer advice) |
RFQ
1.What is the usage of vacuum oil purifier?
It can remove 100 percent free water and 99.9 percent dissolved water, 100 percent free gas and 98 percent dissolved gas, impurities, and prolonged the machine's life.
2.Does your process use chemicals or additives?
No, it is pure -physical technology.
3.What is consumable?
There is no consumable in oil purifier except filters.
4. How is the configuration?
Our standard type, these spare parts are made in China. If you want to choose different configuration such as made in German pump and so on, then we can do it according to your demand. This series machine has been developed more than 20years, all the spare parts are chose according to long time testing.
